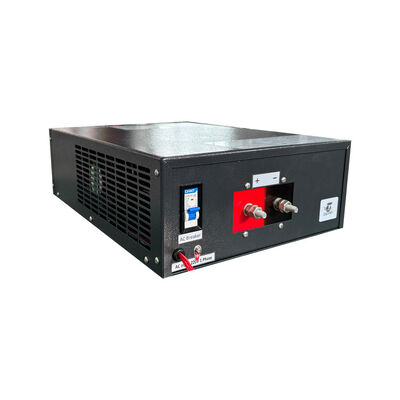

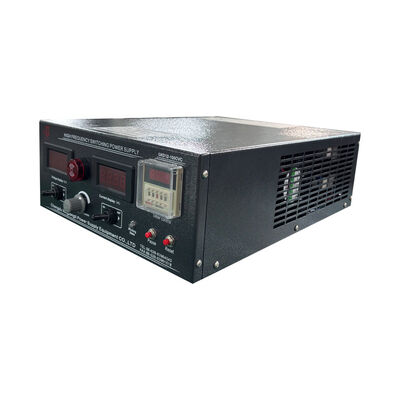

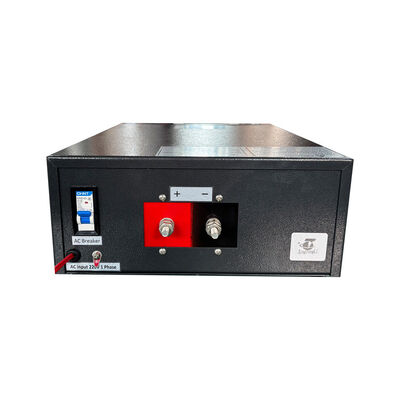

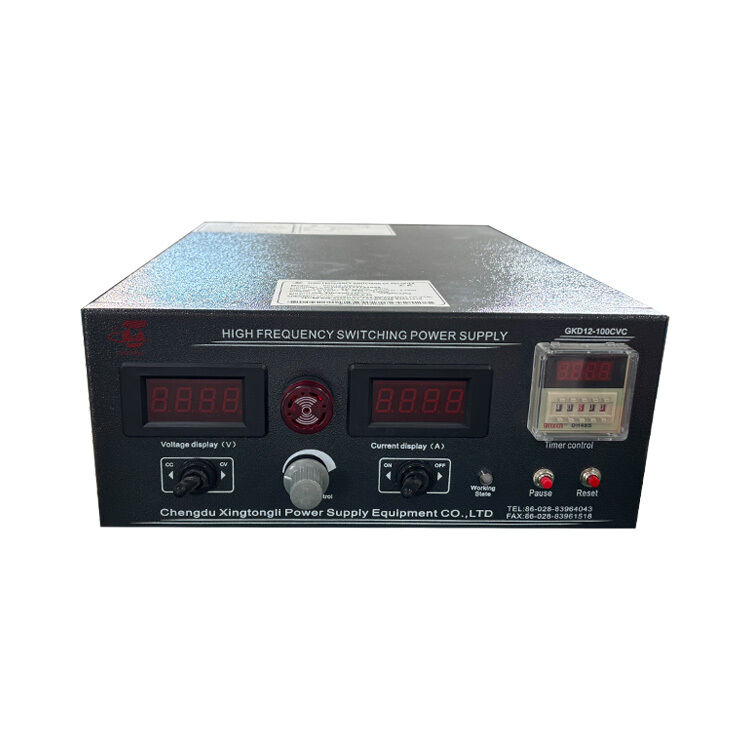

Name: 12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-100CVC
Price: 700.00 USD
Availability: InStock

Nombre De La Marca:	Xingtongli
Número De Modelo:	GKD12-100CVC
Cuota De Producción:	1 Uds.
Precio:	600-800$/unit
Detalles Del Embalaje:	Paquete de exportación estándar de madera contrachapada resistente
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE ISO9001

Capacidad de la fuente:

200 juegos/juegos por mes

Resaltar:

12V 100A DC rectifier power supply

tin plating power supply with timer relay

220V single phase electroplating power supply

Descripción de producto

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

This 12V 100A pure DC power supply is specially designed for tin plating applications, delivering stable and reliable output for consistent coating quality. Equipped with a built-in time relay control, it allows precise timing operation to improve production efficiency and process control. Powered by a 220V single-phase input, this rectifier ensures safe and efficient performance with smooth DC output, making it suitable for small to medium-scale electroplating lines and laboratory use.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max 1.2KW (12V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
